How to Create Simple Image Gallery using repeater control & Jquery in ASP.NET

Introduction

In this post I am explain how to Create Simple Image Gallery using repeater control & Jquery in ASP.NET



Steps :

Step - 1 : Create New Project.

Go to File > New > Project > Select asp.net web forms application > Entry Application Name > Click OK.

Step-2: Add a Folder for Store Image Thumbnail.

Go to Solution Explorer > Right Click on Solution Explorer > Add > New Folder > Enter folder name. (Here in this example I have used "Thumbnail" folder for store image thumbnail)

Step-3: Add a Folder for Store Big Image.

Go to Solution Explorer > Right Click on Solution Explorer > Add > New Folder > Enter folder name. (Here in this example I have used "Images" folder for store Actual Image)

Step-4: Add a Webpage and Design for Sample Image Gallery

Go to Solution Explorer > Right Click on Project name form Solution Explorer > Add > New item > Select web form/ web form using master page under Web > Enter page name > Add.

HTML Code
              <h3>ASP.NET Simple Image Gallery</h3>
            <table border="0" cellpadding="0" cellspacing="0" width="100%">
                <tr>
                    <td width="150px" valign="top" align="center" style="border-right:3px solid #EEEEEE">
                        <div id="ImageGallery" style="overflow:auto; height:350px; width:130px; display:inline-block;">
                            <asp:Repeater ID="Repeater1" runat="server">
                                <ItemTemplate>
                                    <img src='/Thumbnail/<%#Eval("FileName") %>' alt='<%#Eval("FileName") %>' width="100px" style="cursor:pointer" />
                                </ItemTemplate>
                            </asp:Repeater>
                        </div>
                    </td>
                    <td valign="top" align="center">
                        <img id="bigImage" alt="" />
                    </td>
                </tr>
            </table>


Step-5: Write following jquery code for Simple image gallery.


             <script src="Scripts/jquery-1.7.1.js"></script>
            <script language="javascript" type="text/javascript">
                $(document).ready(function () {
                    $('#ImageGallery img').click(function () {
                        var bigImagePath = '/Images/' + $(this).attr('alt');
                        $('#bigImage').attr('src', bigImagePath);
                    });
                });
            </script>


Step-6: Write following code in page_load event for load thumbnail images.


            protected void Page_Load(object sender, EventArgs e)
            {
                if (!IsPostBack)
                {
                    PopulateImages();
                }
            }

Here is the function...
            private void PopulateImages()
            {
                List<MyImages> myImages = new List<MyImages>();
                DirectoryInfo DI = new DirectoryInfo(Server.MapPath("~/Thumbnail"));
                foreach (var file in DI.GetFiles())
                {
                    myImages.Add(new MyImages { FileName = file.Name });
                }
                Repeater1.DataSource = myImages;
                Repeater1.DataBind();
            }

In this example I have used this class.

    public class MyImages
    {
        public string FileName { get; set; }
    }

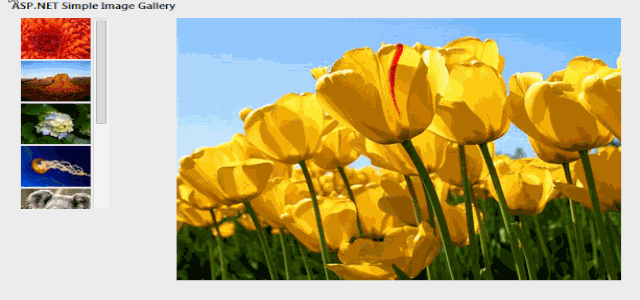

Step-7: Run Application.

Live Demo   Download
